TDM · Open Frame

Touch display solutions,engineered for integration.

From touch display modules for custom enclosures to open-frame monitors that mount straight into your system, InnVasLinX delivers industrial-grade touch displays that shorten development and speed time to market.

11 sizesTDM, 7" to 21.5"
5 sizesOpen Frame, 10.1" to 21.5"
Optical bonding of cover glass in a clean room
Bonding

In-house Bonding

Air gap and direct bonding from 5" to 27".
Gloved hand using an industrial touch display
Touch

Industrial-grade Touch

GFF / GG touch built for demanding environments.
Rear of an open-frame monitor with VESA bracket and ports
Open Frame

Flexible Mounting

VESA, stand or side bracket, with VGA, HDMI and DP.
Open-frame touch monitor fitted into a kiosk
Open Frame

Open Frame Monitor

10.1" to 21.5" for kiosk and HMI integration.
Touch display module with controller boards
TDM

Touch Display Module

Touch, controller and panel, integrated in one module.
Exhibited at

Products

Our product portfolio.

Led by TDM and Open Frame, and supported by in-house expertise in bonding, touch and controller boards.

TDM touch display module with touch controller and control board Featured · 7" to 21.5"

TDM · Touch Display Module

GFF touch, cover glass, an ILITEK touch controller and a matched TFT panel, integrated into a single module ready for your enclosure. Learn more
Open-frame touch monitor fitted into a kiosk

Open Frame Monitor

Industrial TFT and touch in an open frame, with VGA, HDMI, DVI or DP input, USB touch and 12 V power. Five sizes, 10.1" to 21.5". Learn more
Technician performing optical bonding in a clean room

Bonding and Assembly

Air gap and optical bonding, with direct bonding from 5" to 27" in our clean room. Learn more
ePaper signage installed in a train station

ePaper Solution

Full-colour E Ink signage, readable in sunlight and drawing no power while the image stays on. Learn more

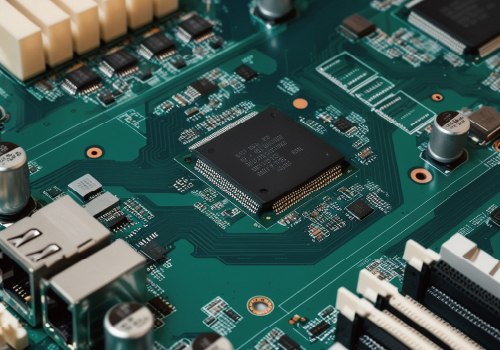

LCD controller AD board close-up

AD Board

Tuned and tested with tier‑1 industrial panels, with custom I/O and firmware. Learn more
Engineers reviewing a custom display project on site

Custom Service

Evaluation, custom ID design and help building production tools, with support at your site. Talk to us

TDM · Touch Display Module

Complete touch integration
in a single module.

Each TDM combines a GFF touch sensor and cover glass with an ILITEK touch controller and a matched TFT panel. One validated module replaces three separate sourcing and tuning efforts, helping your team move from design to production faster.

  • 11 sizes, 7" to 21.5"
  • GFF touch with cover glass
  • ILITEK touch controllers
  • Up to 1920 × 1080

Looking for a ready-to-mount solution? Explore our Open Frame monitors below.

See TDM specifications

7"8"10.1"11.6"12.1"14"15"15.6"17"18.5"21.5"
7" M070WEUS1
Touch
GFF
IC mount
COF
Touch controller
ILITEK ILI2511 (IC)
Resolution
1024 × 600
Cover glass
178.78 × 119.6 mm
8" M080WEUS1
Touch
GFF
IC mount
COF
Touch controller
ILITEK ILI2511 (IC)
Resolution
1024 × 600 / 1280 × 720
Cover glass
207.8 × 138.2 mm
10.1" M101ZEUS1
Touch
GFF
IC mount
COF
Touch controller
ILITEK ILI2511 (IC)
Resolution
1280 × 800
Cover glass
247 × 186 mm
11.6" M116WEUS1
Touch
GFF
IC mount
COF
Touch controller
ILITEK ILI2511 (IC)
Resolution
1366 × 768 / 1920 × 1080
Cover glass
295.43 × 176.43 mm
12.1" M121SEU1S1
Touch
GFF
IC mount
COF
Touch controller
ILITEK ILI2511 (IC)
Resolution
800 × 600 / 1024 × 768
Cover glass
265 × 203.14 mm
14" M140W001S1
Touch
GFF
IC mount
COB
Touch controller
ILITEK VBA53561UE0 (board)
Resolution
1366 × 768 / 1920 × 1080
Cover glass
342 × 220 mm
15" M150S001S1
Touch
GFF
IC mount
COB
Touch controller
ILITEK VBA53561UE0 (board)
Resolution
1024 × 768
Cover glass
346 × 270 mm
15.6" M156W001S1
Touch
GFF
IC mount
COB
Touch controller
ILITEK VBA53561UE0 (board)
Resolution
1366 × 768 / 1920 × 1080
Cover glass
386.7 × 241.1 mm
17" M170R001S1
Touch
GFF
IC mount
COB
Touch controller
ILITEK VBA53561UE0 (board)
Resolution
1280 × 1024
Cover glass
396.32 × 315 mm
18.5" M185W001S1
Touch
GFF
IC mount
COB
Touch controller
ILITEK VBA53561UE0 (board)
Resolution
1366 × 768
Cover glass
450 × 270 mm
21.5" M215W001S1
Touch
GFF
IC mount
COB
Touch controller
ILITEK VBA54478UE0 (board)
Resolution
1920 × 1080
Cover glass
514.64 × 310.51 mm
Open-frame touch monitor being fitted into a kiosk panel GFF / GG touch glass Side-bracket mounting Open-frame design

Open Frame Monitor

Ready to mount.
Ready to deploy.

An industrial-grade TFT LCD and a highly sensitive touch panel, integrated into an open frame that adapts to any mounting method and demanding application. Select a size to view its specifications.

10.1"12.1"15"15.6"21.5"
10.1"G101ICE-L01
Resolution
1280 × 800
Touch
GFF / GG, USB
Bonding
Direct bonding
Video
VGA · HDMI · DP
Power
DC 12 V
12.1"G121I1-L01
Resolution
1280 × 800
Touch
GFF / GG, USB
Bonding
Air bonding
Video
VGA · HDMI
Power
DC 12 V
15"G150XNE-L03
Resolution
1024 × 768
Touch
GFF / GG, USB
Bonding
Air bonding
Video
VGA · HDMI · DP
Power
DC 12 V
15.6"G156BGE-L03
Resolution
1366 × 768
Touch
GFF / GG, USB
Bonding
Air bonding
Video
VGA · HDMI · DP
Power
DC 12 V
21.5"M215HJJ-L30
Resolution
1920 × 1080
Touch
GFF / GG, USB
Bonding
Air bonding
Video
VGA · DVI · DP
Power
DC 12 V

See all Open Frame models

Applications

Proven across five industries.

From retail and education to healthcare and the factory floor, our displays are tailored to how each environment works. Hover over a scene to learn more.

Electronic menu boards in a restaurant01Smart Retail

Smart Retail

Posters, paper menus and acrylic signs replaced by electronic signage and menus that update in seconds.
ePaper reader for paperless reading and writing02Smart Reading & Writing

Smart Reading & Writing

Glare-free ePaper for medical, teaching and learning, cutting paper use and the weight people carry.
Interactive display in a smart classroom03Smart Classroom

Smart Classroom

Interactive displays and on-site equipment for hybrid classrooms that are not tied to one time or place.
Touch display used in a hospital operating room04Smart Medical

Smart Medical

Reliable displays that help clinics deliver better service and more accurate diagnosis and treatment.
Industrial touch HMI on factory equipment05Industrial

Industrial

Wide-temperature operation keeps the picture stable on factory floors and in harsh climates.

Inside a display

Four core layers. One trusted partner.

1

Display panel

Industrial TFT LCD panels from tier‑1 panel makers.

2

Touch and cover

PCAP or 5-wire resistive touch, with cover glass, acrylic or polycarbonate.

3

Bonding

Air gap or optical bonding with OCA or OCR, even across gaps of up to 2 mm.

4

Controller board

An AD board matched to the panel, with custom I/O and firmware when needed.

Let's build your next display solution.

Share your screen size, application and volume. Our engineering team will recommend the right panel, touch and bonding for your project.
